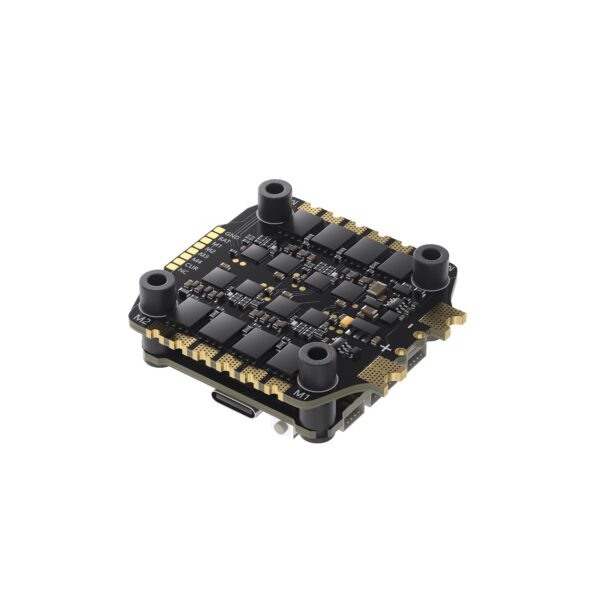

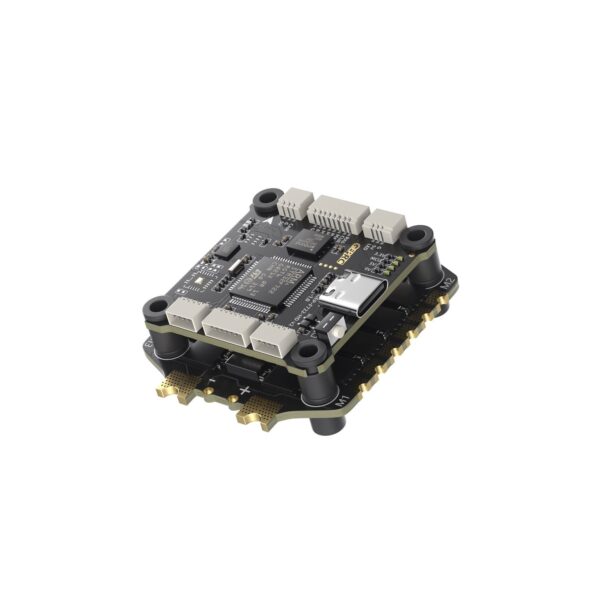

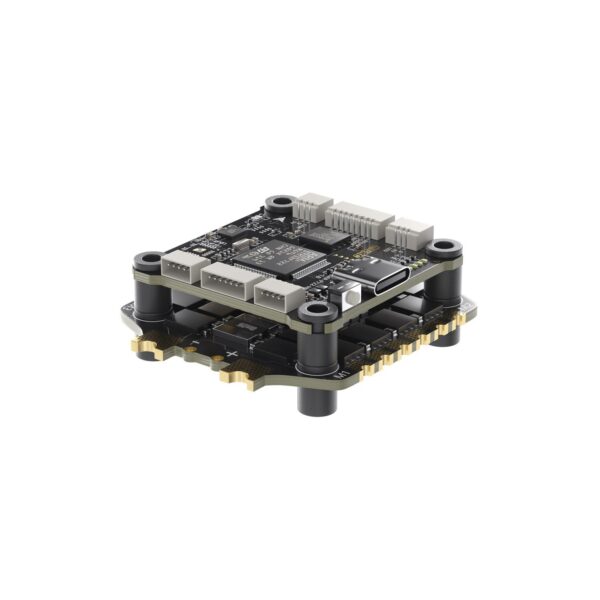

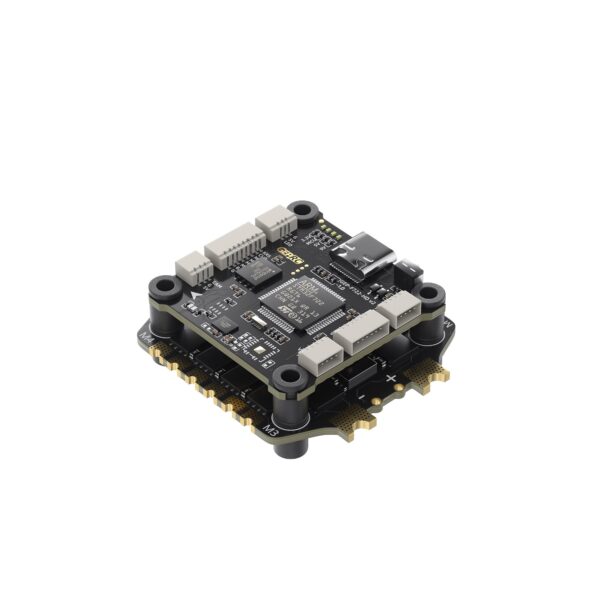

�� Product Description The GEPRC GEP-F722-HD V2 FPV Stack is a powerful and reliable solution for HD FPV drone builds. Powered by the STM32F722 processor and the latest ICM42688-P SPI gyroscope, this stack delivers smooth, stable, and responsive flight performance.Designed for seamless DJI Air Unit direct plug-in, it simplifies wiring while ensuring clean signal and power delivery. The included TAKER H60_BLS 60A 4IN1 ESC provides strong current handling for demanding freestyle and racing setups. With dual independent BECs, an integrated LC filter, and shock-absorbing mounting, this stack is ideal for pilots who want dependable HD performance without unnecessary complexity. ✨ Key Features High-performance STM32F722 MCU for fast and stable control Latest ICM42688-P SPI gyroscope for precise and low-noise flight data 16MB onboard blackbox for flight logging and tuning Direct DJI Air Unit plug-in for clean and simple HD builds Integrated LC power filter for reduced electrical noise Modern Type-C USB interface TAKER H60_BLS 60A 4IN1 ESC for silky-smooth and powerful flight Shock-absorbing mounting system for stable gyro performance Dual independent BEC:
[email protected] 5V@3A Supports 3–6S LiPo batteries ⚙️ Flight Controller Specifications – GEP-F722-HD V2 MCU: STM32F722 IMU: ICM42688-P (SPI) Blackbox: 16MB onboard Air Unit Connection: Direct plug-in to DJI Air Unit USB Interface: Type-C OSD: Betaflight OSD (AT7456E) BEC Output: 5V@3A,
[email protected] (dual BEC) Firmware Target: GEPRCF722 Input Voltage: 3–6S LiPo UARTs: 5 Power Filter: Integrated LC filter Mounting: 30.5 × 30.5mm Size: 36.85 × 36.85mm Weight: 8.1g ⚡ ESC Specifications – TAKER H60_BLS 60A 4IN1 Input Voltage: 3–6S LiPo Continuous Current: 60A Burst Current: 65A (5 seconds) Protocols Supported: DShot150 / DShot300 / DShot600 Current Sensor: Supported Firmware Target: B_X_30 Mounting: 30.5 × 30.5mm Size: 42 × 45.7mm Weight: 14.9g �� Package Includes 1 × GEP-F722-HD V2 Flight Controller 1 × TAKER H60_BLS 60A 4IN1 ESC 1 × Capacitor 1 × DJI Air Unit adapter cable 1 × Flight Controller adapter cable 1 × XT60 power cable 2 × SH1.0 4-pin silicone cables 1 × Camera connection cable 4 × M3×30 screws 4 × M3×25 screws 8 × Nylon nuts 8 × Silicone grommets SKU: FM-GEPRC-F7-V2-S Categories: Electronics, FC/ESC Stacks Tags: 60A 4in1 ESC, DJI Air Unit stack, F722 FPV stack, FPV build 5 inch, FPV drone parts, FPV drone stack, FPV electronics, FPV freestyle stack, FPV India, FPV racing stack, FPV stack 3-6S, FPVMatrix, GEP F722 flight controller, GEPRC F722 HD V2, HD FPV stack, TAKER H60 BLS Brand: GEPRC
