miniDSP – 2×4 Rev B / 2Vrms Digital Signal Processor with Audio Plug-In Code

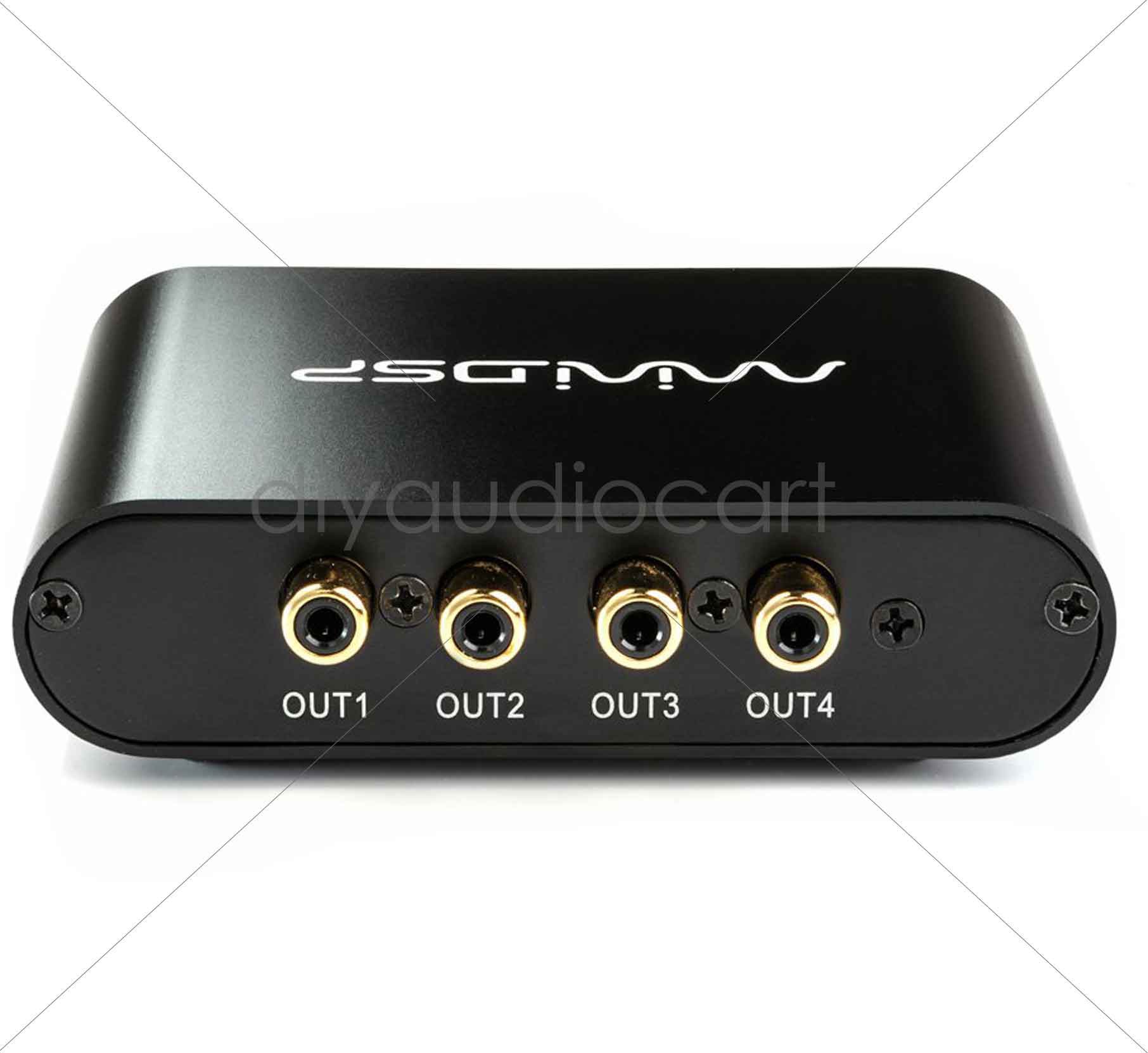

miniDSP – 2×4 Rev B / 2Vrms Digital Signal Processor with Audio Plug-In CodeOverview:The miniDSP 2×4 in a box is a flexible pocket size DSP processor with 2 x analog IN, 4 x analog OUT. Combined with a plug-in software for programming, one can configure the on board Audio processing filters real time from a PC or Mac environment. Once the board configured, the device operates standalone and doesn’t require a computer anymore.Features:28/56bit DSP Engine24 bit ADC/DAC resolution48kHz sampling rateUnbalanced inputs switchable with a jumper between 0.9Vrms and 2VrmsUnbalanced outputs: Max 0.9VrmsNichicon Muse Audiophile capacitorsVolume control by potentiometer on 3pin headerPlug&Play USB driver and real time Software configuration using miniDSP plug-insDevice does not required a PC once configuredUSB self powered device and wide range of DC power options (4.5 to 24VDC)Specifications:Digital Signal Processor Engine:Analog Devices Fixed point DSPInternal Processing resolution & Sample rate:24-56 bit / 48 kHzInput/Ouput Configuration:2 in / 4 outAudio Input Connectivity:Unbalanced input, RCA terminatedAudio Output Connectivity:Unbalanced output, RCA terminatedInput / Output Max Levels:IN: 0.9Vrms / 2Vrms (jumper–selectable), OUT: 0.9VrmsInput Impendance:0.9Vrms position = 8.8 kOhms /2Vrms position = 20 kOhmsOutput Impedance:560 OhmsCalibration Software:miniDSP 2×4 plug-insFiltering Technology:IIRDimensions:26x107x94 mmPower:Powered from USB cable 5 ~24Vdc input via DC 2.1mm round connectCurrent requirement: 150mA @5VWin/Mac Compatible:YesRoom EQ Wizard Support:YesBlock Diagram:What’s in the box?1 x MiniDSP 2×4 in an aluminum enclosure1 x shielded USB cableProduct Manuals / Spec Sheets / Downloads:To download datasheet, Please click Here.To download user manual, Please click Here.Support:Technical assistance and support provided by miniDSP Visit minidsp.desk.comNote:For warranty claim you need to send the product to the miniDSP Hong Kong office since they don’t have service centers here in India and all expenses for that have to be incurred by the customer.For detailed information regarding product warranty, Please click Here.
