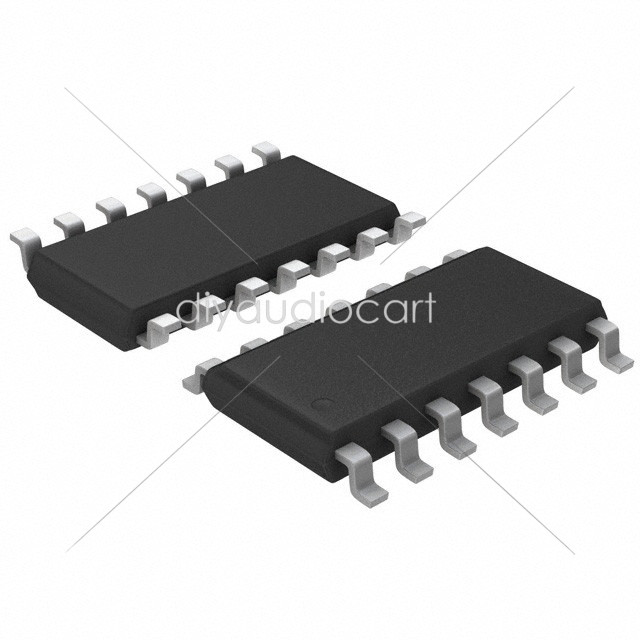

Texas Instruments-SN74HC4066 DR Analog Switch ICs Quadruple Bilateral Analog Switches

Texas Instruments-SN74HC4066 DR  Analog Switch ICs Quadruple Bilateral Analog SwitchesOverview:The SN74HC4066 is a silicon-gate CMOS quadruple analog switch designed to handle both analog and digital signals. Each switch permits signals with amplitudes of up to 6 V (peak) to be transmitted in either direction. Each switch section has its own enable input control (C). A high-level voltage applied to C turns on the associated switch section.Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.Features:Wide Operating Voltage Range of 2 V to 6 VTypical Switch Enable Time of 18 nsLow Power Consumption, 20-µA Max ICCLow Input Current of 1 µA MaxHigh Degree of LinearityHigh On-Off Output-Voltage RatioLow Crosstalk Between SwitchesLow On-State Impedance …50-Ω TYP at VCC = 6 VIndividual Switch ControlsSpecifications:Type:Analog Switch ICsRoHS:RoHSNumber of Switches:4 SwitchConfiguration:4 x SPSTOn Resistance – Max:85 OhmsSwitch Voltage – Max:4.5 VOn Time – Max:36 nsOff Time – Max:40 nsOperating Supply Voltage:2 V to 6 VMaximum Operating Temperature: 85 CMounting Style:SMD/SMTPackage / Case:SOIC-14Minimum Operating Temperature:– 40 CSupply Current – Max:2 uASupply Type:Single SupplySupply Voltage – Max:6 VSupply Voltage – Min:2 VSwitch Continuous Current:50 mAUnit Weight:129.400 mg Product Manuals / Spec Sheets / Downloads:To download datasheet, Please click Here.
