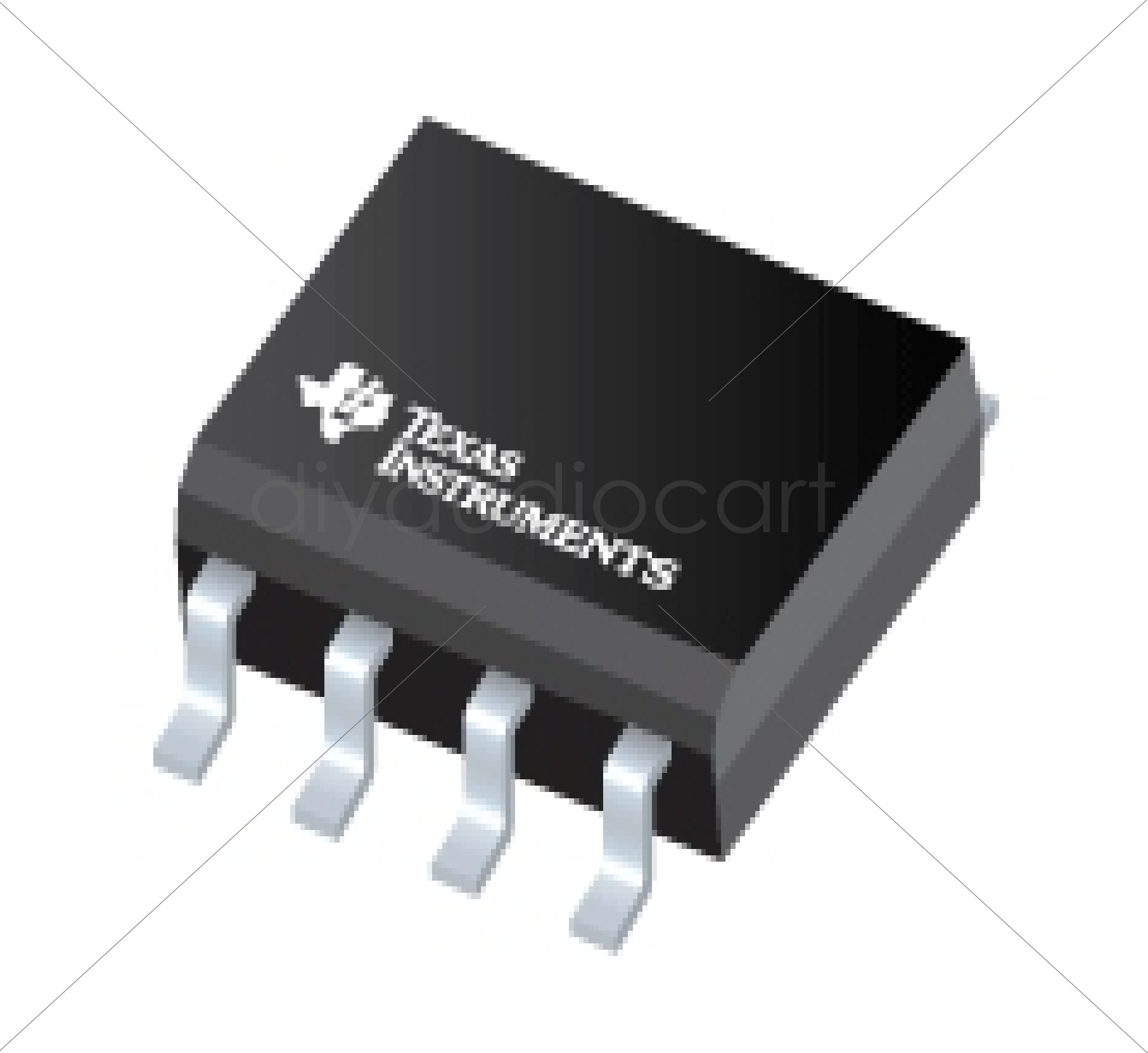

Texas Instruments-Dual lownoise JFETinput improved offset operational amplifier TL072ACDR

Texas Instruments-Dual lownoise JFET input improved offset operational amplifier TL072ACDR Description:The TL07xx JFET-input operational amplifiers incorporate well-matched, high-voltage JFETand bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates,low-input bias and offset currents, and low offset-voltage temperature coefficient. The lowharmonic distortion and low noise make the TL07x series ideally suited for high-fidelity and audiopre-amplifier applications. The TL071 device has offset pins to support external input offsetcorrection Features:Low Power ConsumptionWide Common-Mode and Differential Voltage RangesLow Input Bias and Offset CurrentsOutput Short-Circuit ProtectionLow Total Harmonic Distortion: 0.003% (Typical)Low Noise Vn = 18 nV/√Hz (Typical) at f = 1 kHzHigh-Input Impedance: JFET Input StageInternal Frequency CompensationLatch-Up-Free OperationHigh Slew Rate: 13 V/µs (Typical)Common-Mode Input Voltage Range Includes VCC  Specifications:Number of channels (#)2Total supply voltage (Max) ( 5V=5, /-5V=10)30Total supply voltage (Min) ( 5V=5, /-5V=10)7Rail-to-railIn to V GBW (Typ) (MHz)3Slew rate (Typ) (V/us)13Vos (offset voltage @ 25 C) (Max) (mV)6Iq per channel (Typ) (mA)1.4Vn at 1 kHz (Typ) (nV/rtHz)18RatingCatalogOperating temperature range (C)0 to 70Offset drift (Typ) (uV/C)18FeaturesStandard AmpsInput bias current (Max) (pA)200CMRR (Typ) (dB)100Output current (Typ) (mA)10ArchitectureFETTL072ACDR DATA SHEET
