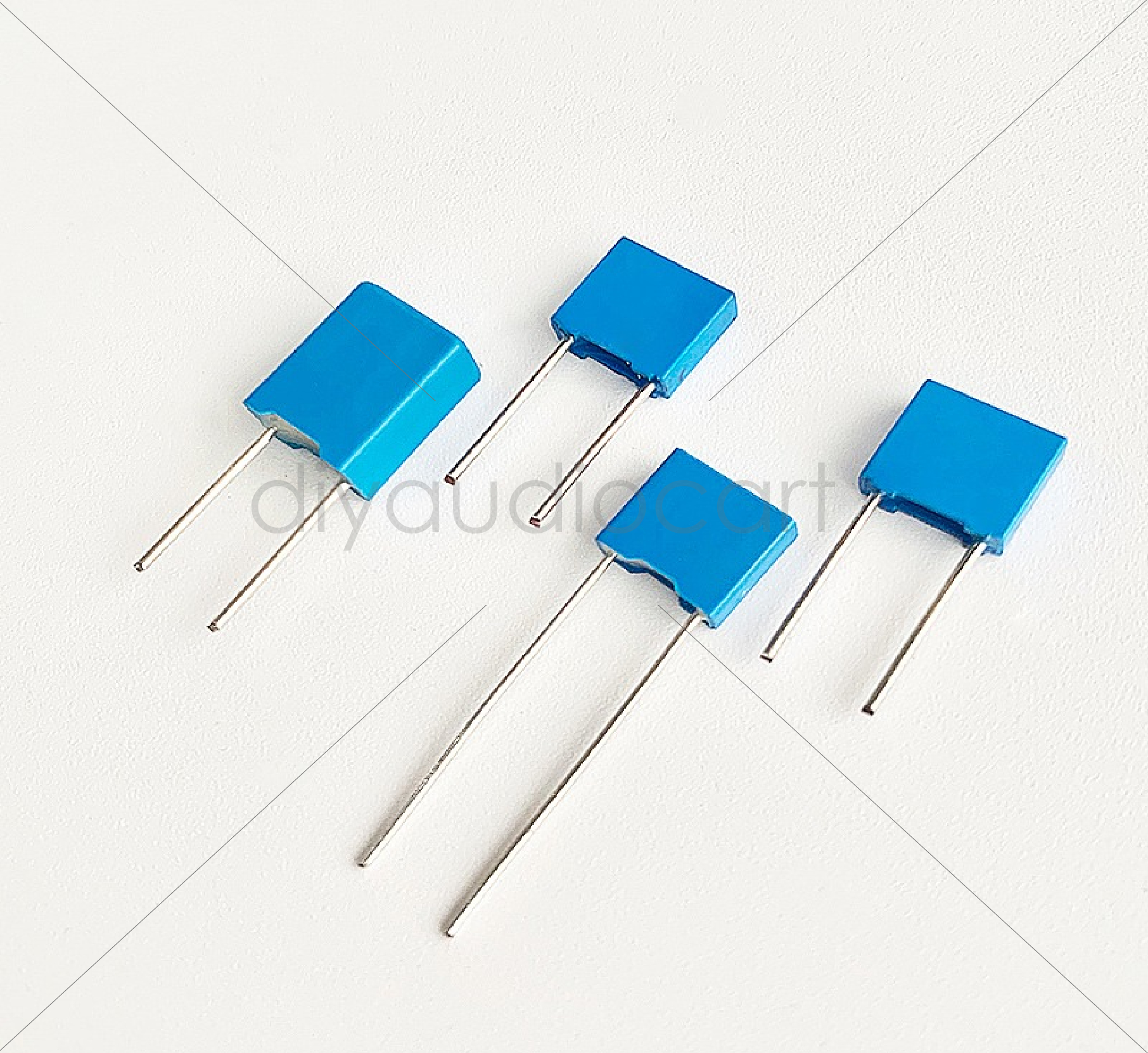

Bevenbi – 1.0uF 100 V Metallized Polyester Film Capacitor

Bevenbi – 1.0 uF 100 V Metallized Polyester Film Capacitor OVERVIEWThe MEB is non-inductive, and the metallized polyester film is used as the dielectric / electrode. The wire is tinned with copper wire, and the epoxy resin is filled in the flame retardant plastic box. SPECIAL FEATURES:Non inductance structure and good self-healingHigh insulation resistanceHigh dV/dt ability TYPICAL APPLICATIONS:By-passing, BlockingCouplingDecouplingPulseLogicTimingOscillator circuitsAudio Amplifiers ELECTRICAL DATA:OperatingTemperature-40~ 85Capacitance Range0.001~1.0FCapacitance tolerance±5%(J) ±10(K) ±20(M)Voltage proof1.6UR (2S)Work Voltage100VDissipation Factor1.0%Max at 1KHz,25Insulation Resistance>15000M(C0.33UF); >5000M(C0.33UF) Download Datasheet click here
