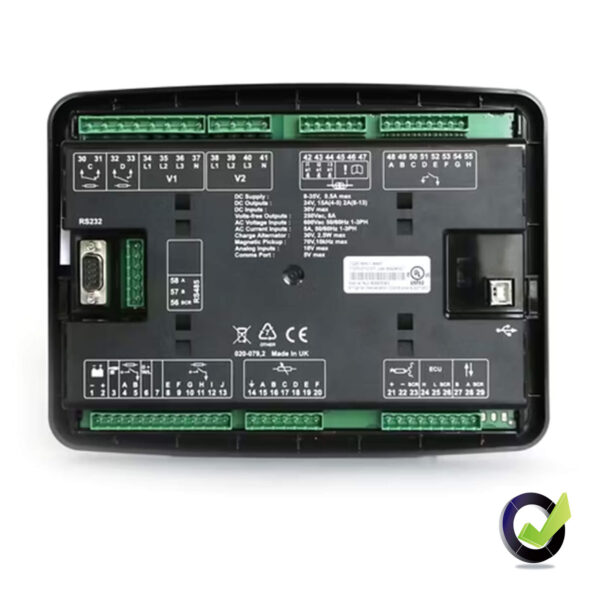

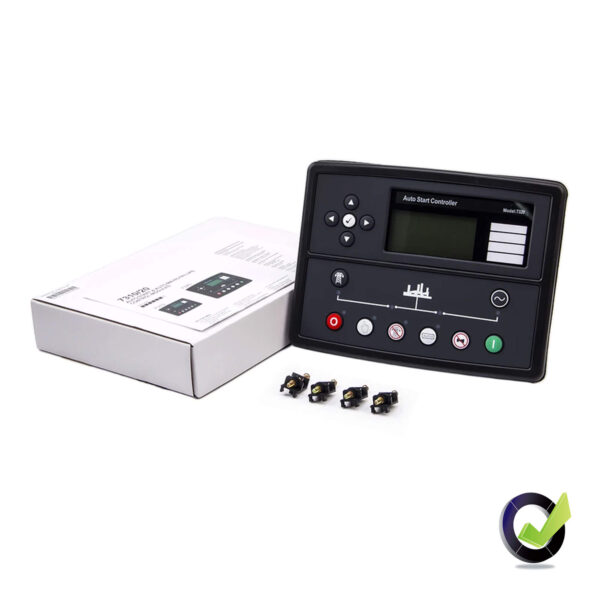

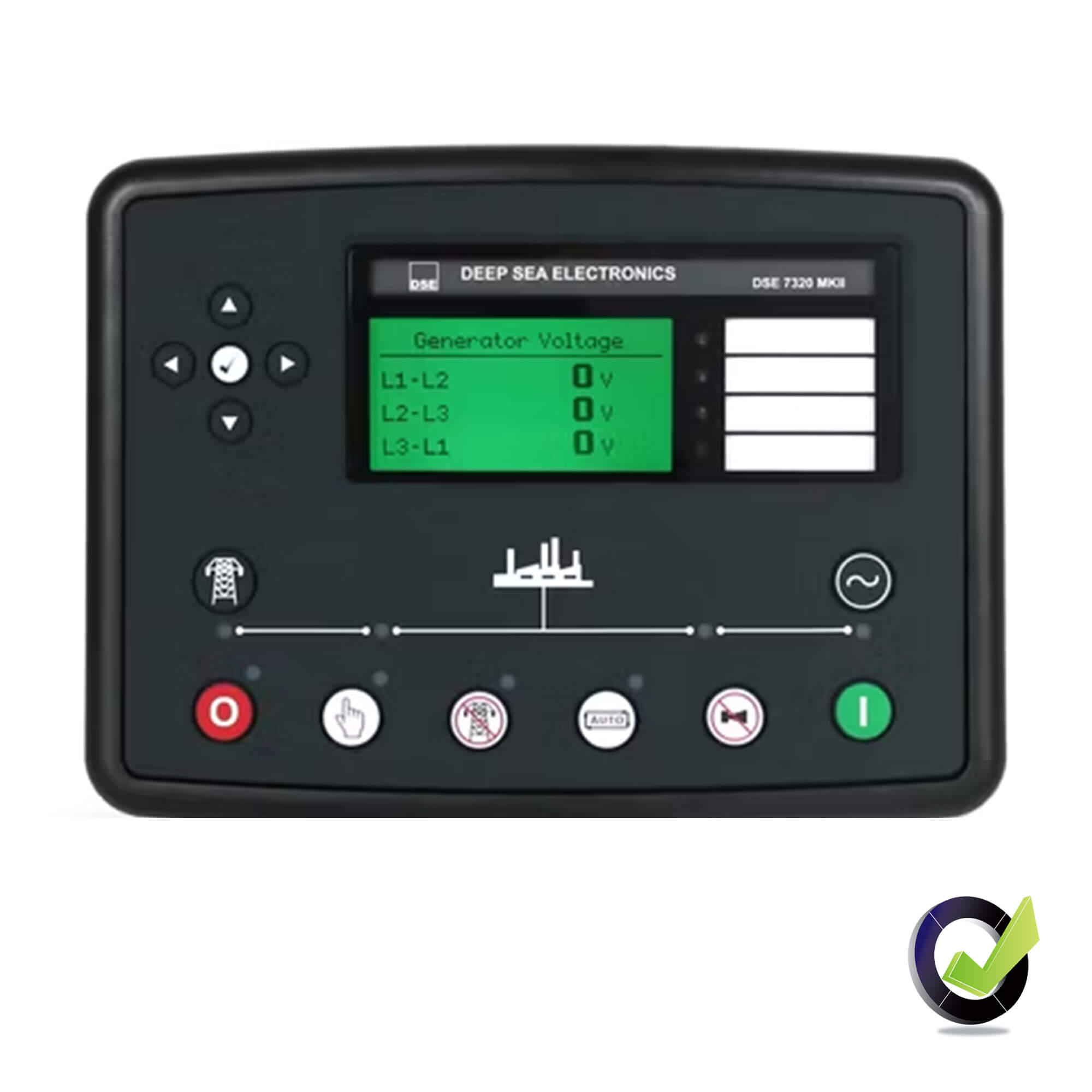

Dse7320 Mkii Deep Sea Electronics Controller System for Generators

Key Features • Configurable power-up mode • MPU fail delay • Enhanced graphical user interface • Drag & drop advanced PLC editor • MSC ID within PLC GenComm override • 4-Line back-lit LCD text display • Multiple Display Languages • Five key menu navigation • LCD alarm indication • Heated display option available • Customisable power-up text and images • DSENet expansion compatibility • Data logging facility • Internal PLC editor • Protections disable feature • Fully configurable via PC using USB, RS232 & RS485 communication • Front panel configuration with PIN protection • Power save mode • 3 phase generator sensing and protection • 3 phase mains (utility) sensing and protection (DSE7320 MKII only) • Automatic load transfer control (DSE7320 MKII only) • Generator current and power monitoring (kW, kvar, kVA, pf) • Mains current and power monitoring (kW, kvar, kVA, pf) (DSE7320 MKII only) • kW and kvar overload and reverse power alarms • Over current protection • Unbalanced load protection • Independent earth fault protection • Breaker control via fascia buttons • Fuel and start outputs configurable when using CAN • 6 configurable DC outputs • 2 configurable volt-free relay outputs • 6 configurable analogue/digital inputs • Support for 0 V to 10 V & 4 mA to 20 mA sensors • 8 configurable digital inputs • Configurable 5 stage dummy load and load shedding outputs • CAN, MPU and alternator frequency speed sensing in one variant • Real time clock • Manual and automatic fuel pump control • Engine pre-heat and post-heat functions • Engine run-time scheduler • Engine idle control for starting & stopping • Fuel usage monitor and low fuel level alarms • Simultaneous use of RS232 and RS485 communication ports • True dual mutual standby using RS232 or RS485 for accurate engine hours balancing. • MODBUS RTU support with configurable MODBUS pages. • Advanced SMS messaging (additional external modem required) • Start & stop capability via SMS messaging • 3 configurable maintenance alarms • Compatible with a wide range of CAN engines, including tier 4 engine support • Uses DSE Configuration Suite PC Software for simplified configuration • Licence-free PC software • IP65 rating (with supplied gasket) offers increased resistance to water ingress • Modules can be integrated into building management systems (BMS) using MODBUS RTU Category: Controller Modules Tag: Dse7320 Mkii Deep Sea Electronics Controller System for Generators
