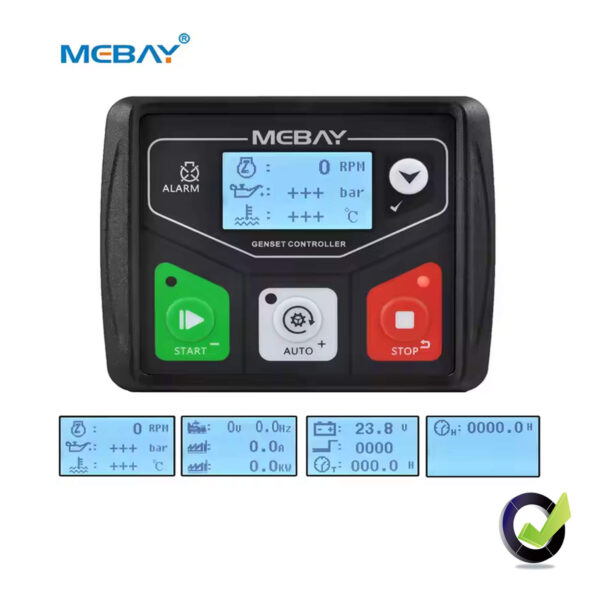

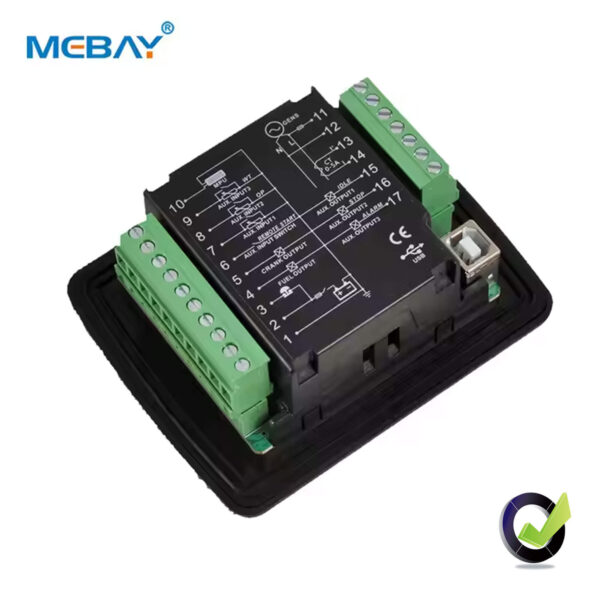

Main Features 32units Micro-procession technology is used. 1.8 inches 128*64 LCD display with backlight, option language interface (Chinese/English), user’s language set if necessary. PC front face panel, which is water-proof, oil-proof, UV proof so that the durability is longer. USB Port: parameters can be set even without power. All the parameters can be set through front panel buttons. Collect and display a variety of engine and generator parameters. Records function: relative faults shall be recorded in real time. It has 5 relay outputs, 3 of which are configurable, and more than 10 functions can be selected for each channel. 1switch value input, and each can be set as max 20 functions. 3sensor simulation input connectors, various kinds of units can be set. Sensor can be self-defined by front face button or PC software. Various of crank conditions (RPM, Frequency, Oil Pressure) can be chosen Control Protection: Auto Start/Stop of genset, load transfer and perfect failure display and protection. Standard water-proof rubber gasket. The waterproof can reach IP54. Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily. Category: Controller Modules Tag: Mebay DC30D Newly Porduced Engine Controller Generator Controller
